SugarCube - Temperature Data Logger

    System Details and Ordering Information

    The SugarCube is a microsized fully contained data logger. The complete temperature data logging system includes the SugarCube, Software, and IRTDongle (it connects to your computer serial port to communicate with the SugarCube). It was designed for those applications that need a very small, protable, turnkey, easy-to-use temperature data logger.

    Navigate up for complete system overview.


    The SugarCube temperature data loggers have a built-in wireless infrared interface. They are about the size of a cube of sugar and weigh only about 1/3 ounce. Each SugarCube contains a state-of-the-art: CMOS RISC Microcontroller, Analog to Digital Converter, Infrared Interface, EEPROM Memory up to 32k bytes, Alkaline or Lithium Battery and Temperature Sensor to give a total micropower solution to the temperature data logging operation.

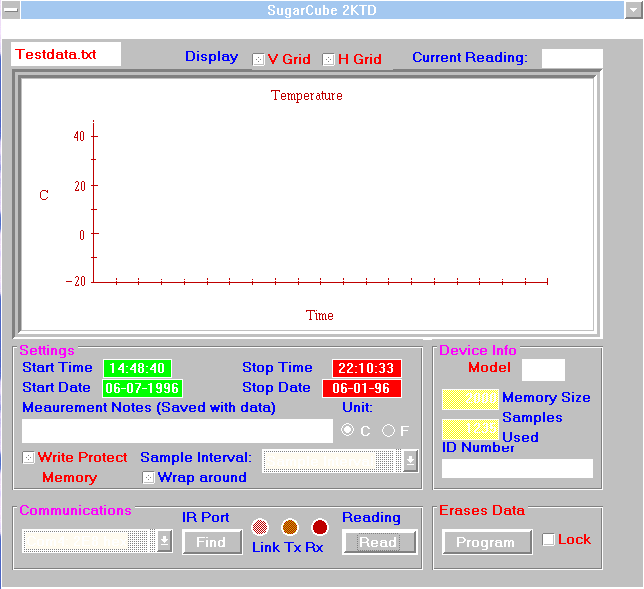

    Windows 3.x/95 compatible plug-and-play software controls the transceiver operation with a simple point and click display that allows you to program the SugarCube operations.


    The software will automatically find and link with as many SugarCubes as are active. Each SugarCube has a unique serial number so you can program and retrieve data from any one unit of many in the vicinity. Each SugarCube provides its model and serial number data, its available memory left for sampling, the last sample taken, and the percentage of remaining battery life available, along with all data in its erasable memory. The software provides automatic display scaling with a time-stamped indication of any data point in memory.








    Features
    Calibrated linear temperature scale Response time constant = 2 minutes
    Accuracy over temperature = 1 degree Centigrade Industrial and consumer tempertature ranges available

    There are three temperature ranges available
    Range A = -40 to 70 degrees C.
    Range B = -20 to 55 degrees C.
    Range C = -5 to 40 degrees C.

    Ordering Information
    SugarCube data logging system package with temperature range A:
    (10) sugarCube - 2K8TA, (1) IRTDongle-25S with SUGARSOFT1SW Windows software
    SUGARPAK-A __________ $939.00

    SugarCube data logging system package with temperature range B:
    (10) sugarCube - 2K8TB, (1) IRTDongle-25S with SUGARSOFT1SW Windows software
    SUGARPAK-B __________ $739.00

    SugarCube data logging system package with temperature range C
    : (10) sugarCube - 2K8TC, (1) IRTDongle-25S with SUGARSOFT1SW Windows software
    SUGARPAK-C __________ $639.00

    See our order page for shipping details.
